TT-71177117B Vibration Analyzer- Bearing and Explosion-Proof Vibration Testers
TT-71177117B Vibration Analyzer- Bearing and Explosion-Proof Vibration Testers
Home / Material Testing / Metal Testing / Vibration Tester

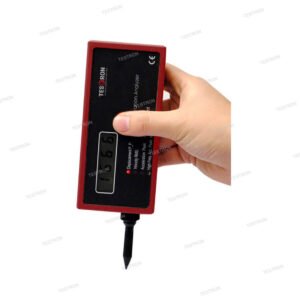

TT-7117/7117B Vibration Analyzer- Bearing and Explosion-Proof Vibration Testers

TT-7117 is a bearing and explosion-proof  vibration analyzer.

Inquiry Now

Category: Vibration Tester
Product categories
  • Plastic Raw Material
  • Material Testing
    • Optical Fibre Cable Testing
    • Cement and Concrete Testing
    • Colour Testing
    • Environmental Chamber
      • Temperature and Humidity Test Chamber
      • Thermal Shock Test Chamber
      • Salt Spray Corrosion Test Chamber
      • Accelerated Weathering Test Chamber
      • Dust and Rain Test Chamber
      • Ozone Test Chamber
      • SO2 H2S CO2 Corrosion Chamber
      • Walk-in Test Chamber
      • Industry Drying Oven
    • Face Mask Testing
    • Metal Testing
      • Handheld Portable XRF Analyzer
      • Vibration Tester
      • Flaw Detector
      • Universal Testing Machines
      • Bench Top Hardness Tester
      • Portable Hardness Tester
      • Video Measuring System
      • Profile Projector
      • Torsion Testing Machine
      • Industrial Borescope
      • Creep and Stress Rupture Testing Machine
      • Fatigue Testing Machine
      • Ultrasonic Thickness Gauge
      • Surface Roughness Tester
      • Metallographic Equipment
      • Coating Thickness Gauge
    • Packaging Testing
    • Pipe Testing
    • Plastic and Rubber Testing
      • Electronic Densimeter
    • Textile Testing
  • Health Care
  • Industrial Machineries
    • Spout Insert and Sealing Machine
    • Cooling and Heating Systems
      • PROCESS WATER CHILLERS
      • PROCESS AIR CHILLERS
      • TEMPERATURE CONTROL UNITS
      • PROCESS AIR DEHUMIDIFIERS
    • Granulators & Shredders
      • Granulators
      • Shredders
      • Air Filtering- De Dusting
  • Description

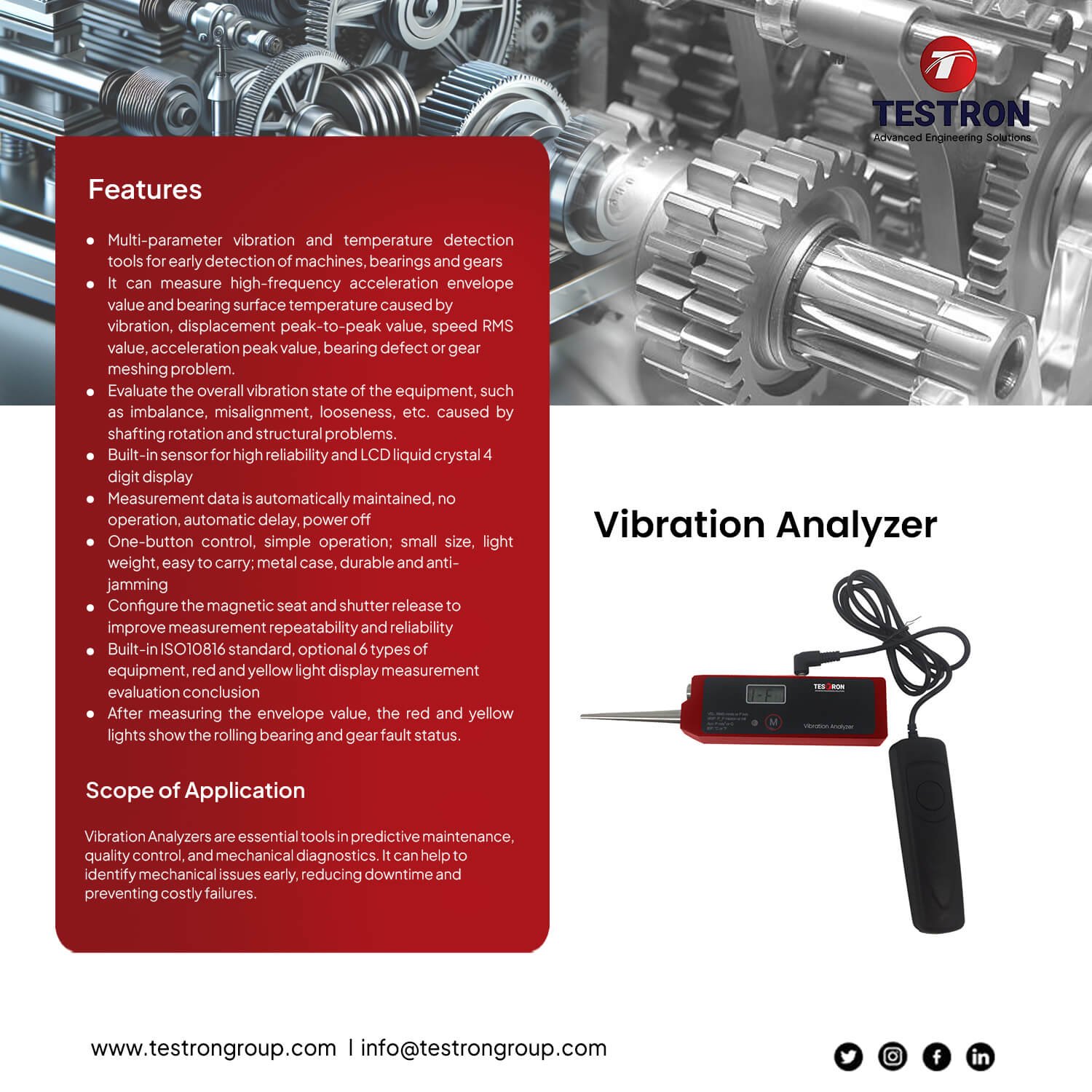

Features:

● Multi-parameter vibration and temperature detection tools for early detection of machines, bearings, and gears

● It can measure high-frequency acceleration envelope value and bearing surface temperature caused by vibration, displacement peak-to-peak value, speed RMS value, acceleration peak value, bearing defect or gear meshing problem

● Evaluate the overall vibration state of the equipment, such as imbalance, misalignment, looseness, etc. caused by shafting rotation and structural problems

● Built-in sensor for high reliability

● LCD liquid crystal 4-digit display

● Measurement data is automatically maintained, no operation, automatic delay, power off

● One-button control, simple operation; small size, light weight, easy to carry; metal case, durable and antijamming

● Configure the magnetic seat and shutter release to improve measurement repeatability and reliability

● Built-in ISO10816 standard, optional 6 types of equipment, red and yellow light display measurement evaluation conclusion

● After measuring the envelope value, the red and yellow lights show the rolling bearing and gear fault status

Technical Specifications:

Model TT- 7117 TT- 7117B
Measuring range Acceleration 0.1~100 m/s² 0.1~199.9 m/s²
Velocity 0.1~250 mm/s 0.1~199.9 mm/s
Displacement 1~3000 μm 1~1999 μm
Frequency range Acceleration 10~1000 Hz 10~1000 Hz; 1000~5000 Hz
Velocity 10~1000 Hz
Displacement 10~500 Hz
Enveloped Acceleration 0.1 to 25 unit / 5 Hz~2 kHz demodulated from 3 kHz~10 kHz
Temperature -33℃~220℃
Accuracy + 5% +2 digits ±5%±2 digits; ±10%±2 digits(high frequency)
Battery 1/2 AA, 3.6V, 20-29mA, >20 hours of continuous operation. 6F22 9V, continuous work >25 hours
Working temperature 0~50℃
Dimensions (mm) 110×35×17 120x60x24
Weight (g) 100 (Including battery) 250 (battery and sensor included)

Standard Delivery:

Main unit 1
Long probe 1
Short probe 1 for TT- 7117
Shutter release 1 for TT- 7117
Magnetic seat 1 for TT- 7117
Leather case 1
User’s manual 1
Certificate 1
Packing box 1
