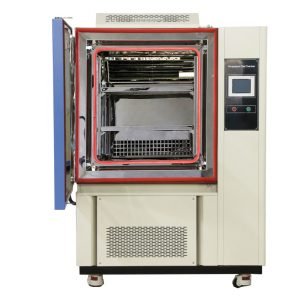

Temperature Humidity Test Chamber Features:
- Floor Type
- Wide temperature ranges and volume selection
- Available in sizes from 50L to 3000L
- Standard and custom
- Temperature control and display unit
- Humidity control and display unit
- Programmable color LCD touch screen controller
- Multi-language interface
- USB and Ethernet
- Casters, shelf, and cable port are standard
- Build-in water tank
- Adjustable and removable sample shelves
- Safety protection system
- CE mark, ISO17025 calibration
- Some models in stock
Temperature Humidity Test Chamber Models:
Model | Internal Dimension (mm) | Overall Dimension (mm) | Temperature Range (℃) | Humidity Range (R.H) | |
---|---|---|---|---|---|
TH-100 | 400*500*500 | 860*1050*1620 | A: -20℃ ~+150 ℃ B:-40℃ ~+150 ℃ C:-70℃ ~+150 ℃ | 20% ~ 98% RH | |
TH-225 | 500*600*750 | 960*1150*1860 | A: -20℃ ~+150 ℃ B:-40℃ ~+150 ℃ C:-70℃ ~+150 ℃ | 20% ~ 98% RH | |
TH-500 | 700*800*900 | 1180*1350*2010 | A: -20℃ ~+150 ℃ B:-40℃ ~+150 ℃ C:-70℃ ~+150 ℃ | 20% ~ 98% RH | |
TH-800 | 800*1000*1000 | 12800*1550*2110 | A: -20℃ ~+150 ℃ B:-40℃ ~+150 ℃ C:-70℃ ~+150 ℃ | 20% ~ 98% RH | |
TH-1000 | 1000*1000*1000 | 1550*1550*2110 | A: -20℃ ~+150 ℃ B:-40℃ ~+150 ℃ C:-70℃ ~+150 ℃ | 20% ~ 98% RH |
Temperature Humidity Test Chamber Accessories:
Number | Name | Picture | Description |
---|---|---|---|
No.1 | Refrigerant | ![]() |
Refrigerant R404A (5KG/tank) Brand: DuPont |
No.2 | Refrigerant | ![]() |
Refrigerant R23 (10KG/tank) Brand: DuPont |
No.3 | Adding Refrigerant Kits-Tool | ![]() |
Adding Refrigerant Kits-Tool Material: PU Included pressure gauge and connection hose (Reusable) |
No.4 | Temperature heater | ![]() |
Temperature heater Description: Nichrome heater Power:2000W, and more |
No.5 | Humidity heater | ![]() |
Humidity heater Description: Nichrome heater Power:1000W |
No.6 | Capacitive temperature/humidity sensor | ![]() |
Brand: VAISALA Model: HMA6070 Temperature Accuracy:0.01℃ Humidity Accuracy: 1.3% Solution ratio:0.05% |
No.7 | Silicone screw plug for cable hole | ![]() |
Silicone screw plug for cable hole |
