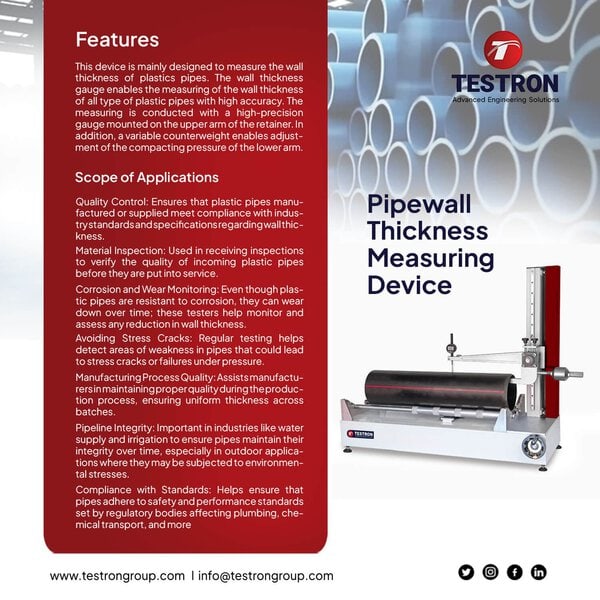

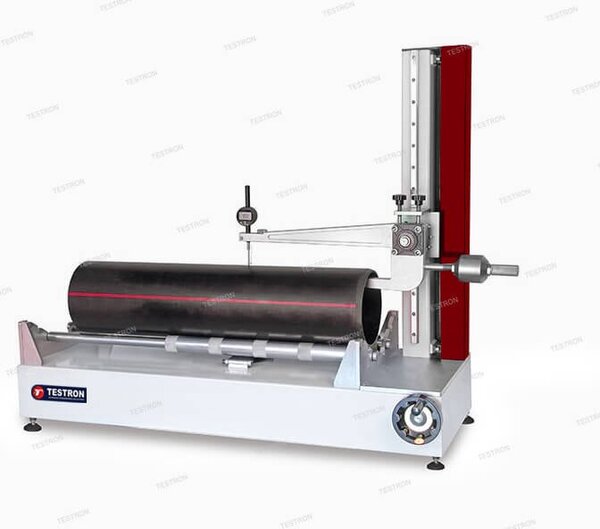

This device is mainly designed to measure the wall thickness of plastic pipes. The wall thickness gauge enables the measuring of the wall thickness of all types of plastic pipes with high accuracy. The measuring is conducted with a high-precision gauge mounted on the upper arm of the retainer. In addition, a variable counter-weight enables adjustment of the compacting pressure of the lower arm.
- Wall thickness range: 0 to 35mm；
- Resolution: 0.01mm；
- Pipe diameter range: Φ110mm toΦ630mm；
- Max. measuring depth: 400mm
