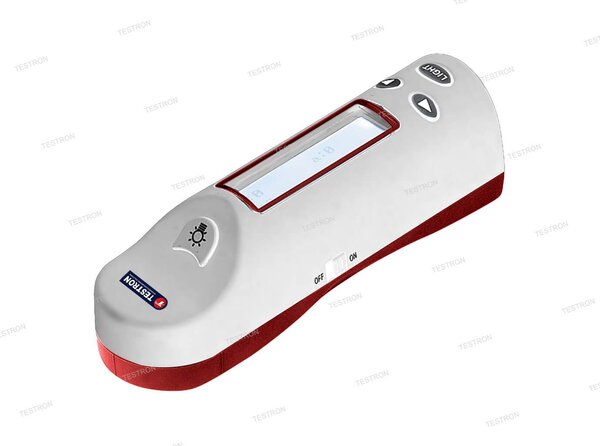

TT-D100 Color Difference Meter Features:
● Easy and direct operation with the simple function key
● Display directly color difference by △E*ab, △L*a*b, CIE_L*a*b, CIE_L*c*h
● Silicon photodiode as light sensors for analyzing the absorption spectra.
● Standard deviation within △E*ab0.2 (test condition: choose average values by 12 pcs white tabula)
● Possibility of measuring any color of smooth surface
● LED illumination available
● Communication with PC the practical software
TT-D100 Color Difference Meter Technical Specification
Test accuracy: Within 0.2△E*ab
Color space: △E*ab, CIE_Lab、△L、△a、△b, CIE_Lch
Measuring range: L:0~100, a:-128~127 b:-128~127
Measuring time: About 2 seconds
Measuring interval: About 2 seconds
Measuring aperture: Ø8mm
Automatic shutdown: Automatic shutdown after 5 minutes of waiting
Memory: Keep a group of data automatically (without connecting to PC)
Field of view: 10°regulated by CIE
Light source: D65 light source
Sensor: Correct silicon photodiode (seed array)
Screen type: LCD with backlight
Power: 1.5V AA batteries×2, DC/5V (1.5A)
Operating environment: 0℃~+40℃; lower than 85% relative humidity
Dimension (mm): 170×50×48.8
Weight (g): 204 ( without batteries)
