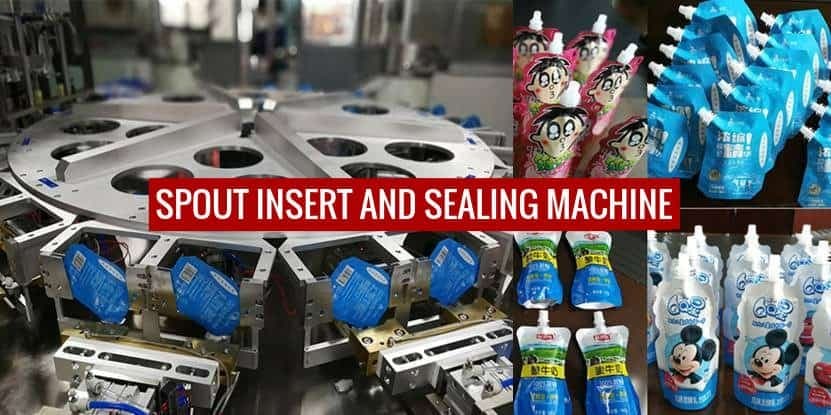

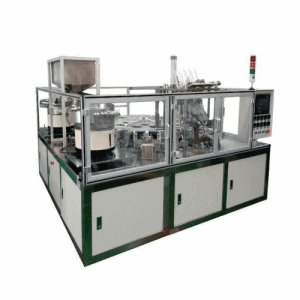

Spout Insert and Sealing Machine is specialized for inserting spouts and sealing bags fully automatically. It is applied to a variety of spouts and bags of different diameters and lengths, such as standing-up bags, 3-side sealing bags, and daypacks.
It is a fully automatic system consists of heat sealing system, spout input system, and bag input system, bag output system, and central control system mounted on single base frame from module. All systems are equipped with electronic sensors and relays to work cordially for efficient and quality manufacturing of packaging bags.
Spout sealing machine is automatic PLC controlled machine specially designed for mass production of packages with spouts and heat sealed packages.
Spout Insert and Sealing Machine Features
- Fully automatic; a single set of machine needs only one operator, and the operator just needs to load enough spouts and bags at intervals.
- Adopting round disc structure, the equipment occupies small space.
- All the components are made of aluminum and stainless steel, and meet the hygienic and quality requirements of food, pharmaceutical, environmental and industries.
- Easy to use with precise control; runs stably and works long hours continuously.
- Adopts imported temperature control module, SMC pneumatic component, Omron PLC control unit to ensure the quality, performance, and life of the machine.
- Automatically detects faults, gives alarms, stops, diagnoses and show where the fault is.
Spout Insert and Sealing Machine Technical Specifications
- Bag types: self-stand bags, three-side sealing bags, doypacks, irregular bags and cubic bags
- Spout standard: diameter 8.5mm or 10mm, customization is available
- Bag width: medium tube 60-120mm, inclined tube 60~150mm
- Bag length: medium tube 70~210mm, inclined tube 60~150mm
- Processing speed: medium tube 90pcs/min (customized bag rack, three-side sealing bags and doypacks) Inclined tube 80pcs/min (irregular bags)
- Main transmission structure: splitter (0-degree error)
- Servo motor: special flange gear-down motor
- Sealing method: heat sealing
- Sealing blades: 6 sets– 1 set for cooling.
- Controlling method: PLC controlled
- Temperature control: PID controlled, precision: 0.1 ℃
- Sense method: photoelectric sensed
- Cooling device: tube and water (current velocity: 0.5m/s)
- Bag collecting quantity: Dual track collect bags, each track 40~50 pcs
- Power: 13KW
- Electric source: 380V, in three-phase four-wire system
- Machine size: about 240cm(width) x 220cm(length) x 230cm(Hight)
- Weight: 2000kg
